High Frequency Transformer
Created with Pixso. 5V 220V Small Electric transformers 220V 9V With ROHS Certificate

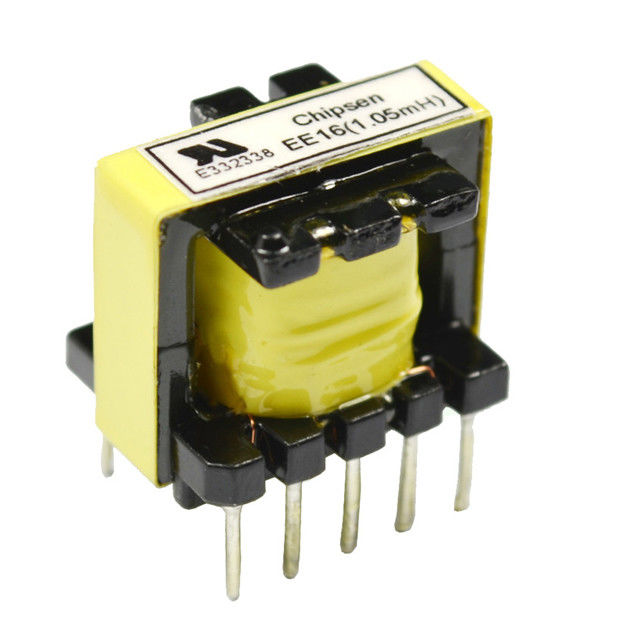

5V 220V Small Electric transformers 220V 9V With ROHS Certificate
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

5V 220V Small Electric transformers 220V 9V With ROHS Certificate

Brand Name: Chipsen
Model Number: EE16 3.5mH
Price: CN¥3.63/pieces 1-4999 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
RoHs
Application:
High Frequency
Phase:
Single Phase
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Color:
Yellow Black
Core:
Mn Zn
Wire:
Copper
Pin:
3+3/4+4/5+5/6+6 / As Your Request
Input Voltage:
AC 110V/220V / 440v / 220v
Frequency:
1KHz -200KHz
Material:
Phenolic
Type:
Horizontal / Vertical / SMD
Rated Capacity:
500
Port:
Yantian Shenzhen
Packaging Details:
pearl wool
Supply Ability:
50000 Piece/Pieces per Week Negotiated
Product Description
Product Description

High Frequency Transformer

 Specification

Testing Items

Features

1) Frequency Range:1KHz to 200KHz

2) Output Power:       1W to 10,000W

3) Output Voltage:    0.5 to 10,000Vrms

4) Output Current:    0.01A to 1000A

1) Turns Ratio  &   Inductance

2) Phase Test  &  Safety Test

3) DC Resistance Test

4) High Voltage Test

Low Loss

Low Temperature Rise     Large Transmission Power

Stable performance

5V 220V Small Electric transformers 220V 9V With ROHS Certificate 0

Applications

1) Power supply

2) The electric car charger
3) Electrical / Medical / Communication equipments
4) The solar energy & inverter equipments
5) Vehicle electronic equipment industry

6) UPS, VCD/DVD players, audio and visual equipment TV sets,

7) Microcomputer equipment, printers, Terminals

Certifications

5V 220V Small Electric transformers 220V 9V With ROHS Certificate 1

Product Photo Show

Below photos are for you reference about the dimension.

If you need customized transformer, our engineer will design as your request specification.

 5V 220V Small Electric transformers 220V 9V With ROHS Certificate 25V 220V Small Electric transformers 220V 9V With ROHS Certificate 3

FAQ

How To Get Quotation from Chipsen?

To get right quotation, please inform us your specificsations like below:

A: For transformer:

  • input/output voltage
  • output current, or power
  • working frequency
  • demension of transformer

B: For toroidal inductor:

  • demension & material of core
  • number of turns
  • wire diameter

C: For air coil:

  • inner & outer diameter
  • wire diameter
  • turns

D: For SMD inductor/ switches:  model No.



How to get samples?

Chipsen Sample Policy

  • For 1-10pcs, and total value below 100RMB: free of sample charge
  • For 10pcs, sample charge is 1.5 times of unit price

How long the sample can be ready?

  • 3-5 days for new samples, 1 day for sample in stock

Shipping for samples

Customer afford freignt cost, we can help customer to use the cheapest way.

5V 220V Small Electric transformers 220V 9V With ROHS Certificate 4

Contacts



Want to know more?

5V 220V Small Electric transformers 220V 9V With ROHS Certificate 5

Visit our website: www.chipsen.com.cn/en/
