The Best Selling 240V 220V 12V Bando ERL 35 High Frequency Transformer

Brand Name:	Chipsen
Model Number:	EC020
Price:	CN¥3.63/pieces 1-4999 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

U L ISO 9001 ISO 14001

Type:

Power Transformer

Material:

Copper, Aluminum

Frequency:

1KHZ-500KHZ

Shape:

Coil, Rectangle, Vertical

Toplogy:

Boost, Flyback

Winding Material:

Copper, Aluminum

Application:

Electronic

Phase:

Single Phase

Coil Structure:

TOROIDAL

Coil Number:

AUTOTRANSFORMER

Input Voltage:

12v-240v

Output Voltage:

12v-240v

Color:

Black Yellow

Core:

PC40

Pin:

4+4

Brand:

Chipsen

Delivery Time:

7-12 Working Days

Efficiency:

More Than 98%

Warranty:

5 Years

Working Frequency:

1kHZ-500kHZ

Product Description

The Best Selling 240V 220V 12V Bando ERL 35 High Frequency Transformer rmer

Product Photo Show

Below photos are for you reference about the dimension.

If you need customized transformer, our engineer will design as your request specification.

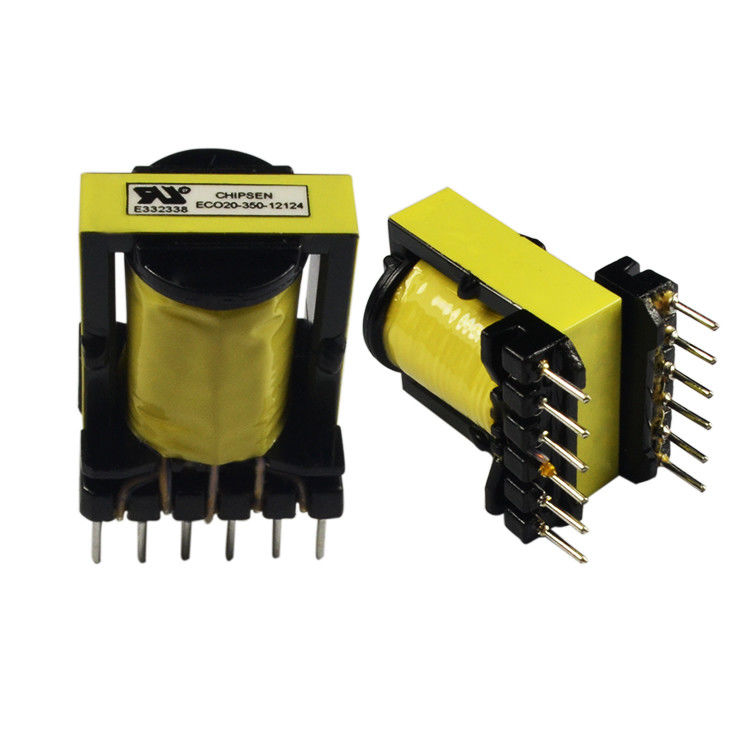

The Best Selling 240V 220V 12V Bando ERL 35 High Frequency Transformer 1

Components	bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy
Bobbin Material	bakelite/ phenolic/ plastics
Shape Type	horizontal / vertical / SMD
Inductance Range	1uH-100H
Working Frequency Range	1Hz --100KHZ
Output Power	0.1W-3000W
Output Voltage	0.1V-10000V
Output Current	0.01A-100A
Operating Temperature	-15℃~+80℃
Storage Temperature	-25℃~+85℃
Storage Humidity	30% ~ 90%
Test Items	Ø Turns ratio
	Ø Inductance
	Ø Phase test
	Ø Inductance leakage
	Ø DC resistance test
	Ø Withstand voltage
	Ø Insulation resistance
Certification	ISO9001:2015, ISO14001:2015, UL, ROHS, CQC
MOQ	1000 pcs
OEM/ODM	acceptable
Sample	free
Sample Time	3-5 working days
Package	EPE foam + export carton, or plastic tray+export carton
Delivery time	15-18 working days against deposit
Features	Large transmission power
	Low loss
	Low temperature rise
	Stable performance
Applications	1. switching power supply
	2. electrical home appliance
	3. medical equipments
	4. communication device
	5. solar energy and inverter
	6. car charging pile and car charger
	7. security products and smart home
