High Frequency Transformer
Created with Pixso. Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH

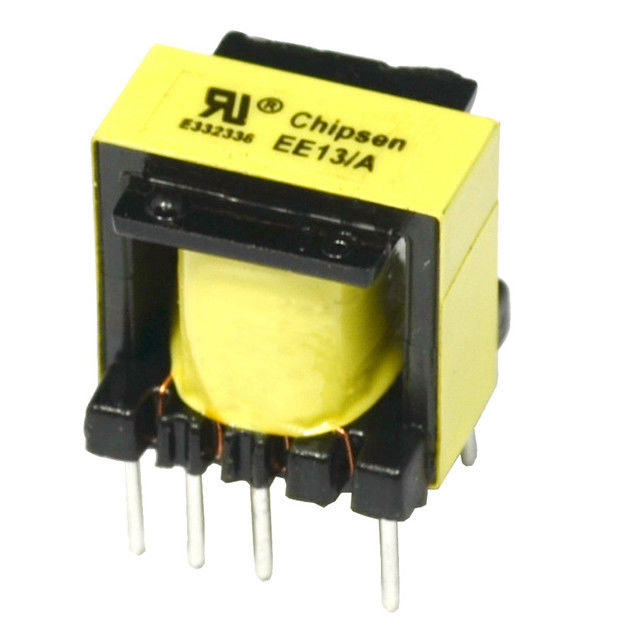

Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH

Brand Name: Chipsen
Model Number: EE13
Price: CN¥3.63/pieces 1-4999 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
U L ROHS
Application:
Power
Phase:
Single Phase
Coil Structure:
TOROIDAL
Coil Number:
AUTOTRANSFORMER
Effieciency:
98%
Delivery:
7 Working Days
Bobbin:
Generic
Electrical Strengh:
3000vac
Magnet Wire:
36 AWG Solderable Double Coated
Triple Insulated Wire:
25 AWG
Core:
PC40
Material:
Copper Wire + Ferrite Core
Working Frequency:
1kHZ-500kHZ
Product Description

 Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH

Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 0

Product Photo Show

Below photos are for you reference about the dimension.

If you need customized transformer, our engineer will design as your request specification.







Components bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy
Bobbin Material bakelite/ phenolic/ plastics
Shape Type horizontal / vertical / SMD
Inductance Range 1uH-100H
Working Frequency Range 1Hz --100KHZ
Output Power 0.1W-3000W
Output Voltage 0.1V-10000V
Output Current 0.01A-100A
Operating Temperature -15℃~+80℃
Storage Temperature -25℃~+85℃
Storage Humidity 30% ~ 90%
Test Items Ø Turns ratio
Ø Inductance
Ø Phase test
Ø Inductance leakage
Ø DC resistance test
Ø Withstand voltage
Ø Insulation resistance
Certification ISO9001:2015, ISO14001:2015, UL, ROHS, CQC
MOQ 1000 pcs
OEM/ODM acceptable
Sample free
Sample Time 3-5 working days
Package EPE foam + export carton, or  plastic tray+export carton
Delivery time 15-18 working days against deposit
Features Large transmission power
Low loss
Low temperature rise
Stable performance
Applications 1. switching power supply
2. electrical home appliance
3. medical equipments
4. communication device
5. solar energy and inverter
6. car charging pile and car charger
7. security products and smart home
Company Information

Chipsen Electronics specialize in transformers, inductors, coils & switches since the year 2000.

Our head quarter is in Dongguan city, 80 employee, with R&D, QC, sales and production for orders under 10000pcs.

Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 1Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 2Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 3Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 4



Our production base is located in Nanchang city, with 200 workers.

Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 5





Certifications



Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 6

Packaging & Shipping

 Electronic 230v 12v 50w Magnetic EE13 Transformer 7.5mH 7

FAQ

How to get samples?

Chipsen Sample Policy

  • For 1-10pcs, and total value below 100RMB: free of sample charge
  • For 10pcs, sample charge is 1.5 times of unit price

How long the sample can be ready?

  • 3-5 days for new samples, 1 day for sample in stock

Shipping for samples   Customer afford freignt cost, we can help customer to use the cheapest way.
